Specifications

Series Number Description

JSP

10

1

V

0

A1

MA

1

Series

No.

Tank

Capacity

Motor

Type

Pump

Type

Pump

Flow

Pressure

Range

Manifolds Position

Circuit

Structure

Vane Pump Hydraulic Power Unit

Model.

EX : JSP-10-1-V-0-A1-MA-1

NO.

Tank Capacity

10

10L

20

20L

30

30L

60

60L

80

80L

100

100L

120

120L

Others

Others

NO.

Motor

1

0.75kw-4P

2

1.5kw-4P

3

2.2kw-4P

4

3.7kw-4P

5

5.5kw-4P

6

Others

NO.

Pump

V

Variable Vane Pump

NO.

Flow

0

8.3 cc

1

11.1 cc

2

16.7 cc

3

22.2 cc

4

Others

5

其他

6

其他

7

其他

NO.

Pressure Range

A1

15-35 kg

A2

35-50 kg

A3

50-70 kg

A4

Others

A5

其他

NO.

Manifolds Position



MA

On the tank panel

Circuits not limited



MB

On the pump

Circuits at most three-way

NO.

Circuit Structure

1

02-1 Station

2

02-2 Station

3

02-3 Station

4

Others

Piston Pump Hydraulic Power Unit

Model.

EX : JSP-10-1-P-0-A1-MA-1

NO.

Tank Capacity

10

10L

20

20L

30

30L

60

60L

80

80L

100

100L

120

120L

Others

Others

NO.

Motor

1

0.75kw-4P

2

1.5kw-4P

3

2.2kw-4P

4

3.7kw-4P

5

5.5kw-4P

6

Others

NO.

Pump Type

P

Variable Piston Pump

NO.

Pump Flow

0

8 cc

1

16.5 cc

2

22 cc

3

36 cc

4

46 cc

5

70 cc

6

100 cc

7

Others

NO.

Pressure Range

A1

10-40 kg

A2

20-70 kg

A3

30-140 kg

A4

40-210 kg

A5

Others

NO.

Manifolds Position



MA

On the tank panel

Circuits not limited



MB

On the pump

Circuits at most three-way

NO.

Circuit Structure

1

02-1 Station

2

02-2 Station

3

02-3 Station

4

Others

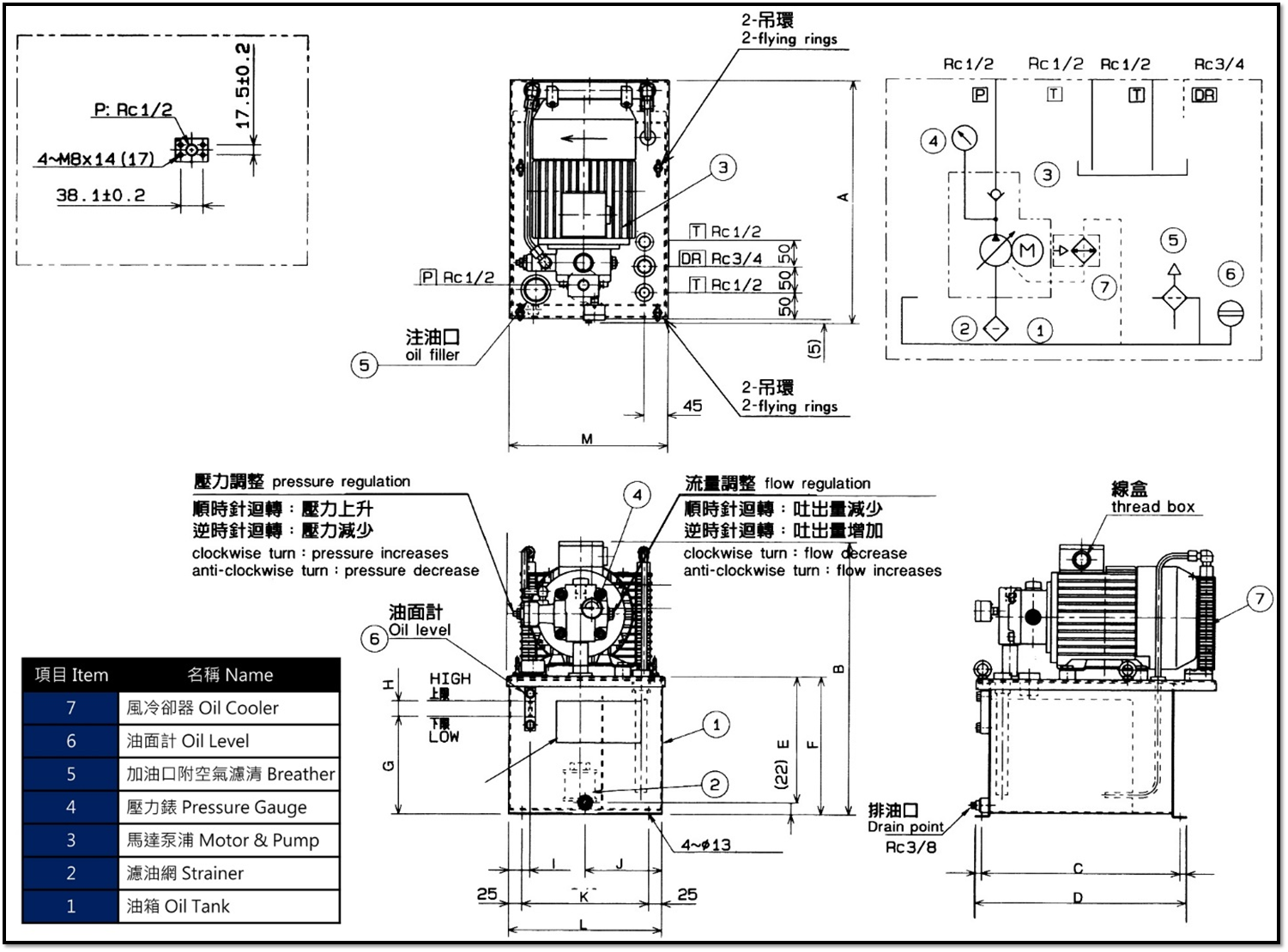

Dimensions



Dimensions ( mm )

Model

A

B

C

D

E

F

G

H

I

J

K

L

M

JSP-10-0.75-V*-A*

440

420

380

400

155

160

70

45

40

145

240

290

300

JSP-10-0.75-V*-A*

440

420

380

400

155

160

70

45

40

145

240

290

300

JSP-10-1.5-V*-A*

480

435

380

400

155

160

70

45

40

145

240

290

300

JSP-20-1.5-V*-A*

510

540

380

400

255

260

170

45

40

145

240

290

300

JSP-30-2.2-V*-A*

580

520

560

580

185

190

100

45

40

145

240

290

300

JSP-20-1.5-P*-A*

510

540

380

400

255

260

170

45

40

145

240

290

300

JSP-30-1.5-P*-A*

580

520

560

580

185

190

100

45

40

145

240

290

300

JSP-30-2.2-P*-A*

580

520

560

580

185

190

100

45

40

145

240

290

300

JSP-30-2.2-P*-A*

580

520

560

580

185

190

100

45

40

145

240

290

300

JSP-60-3.7-P*-A*

680

550

560

580

255

260

170

45

40

205

360

410

420

JSP-60-3.7-P*-A*

680

550

560

580

255

260

170

45

40

205

360

410

420

JSP-80-3.7-P*-A*

680

570

650

680

295

300

225

45

40

205

360

410

420

JSP-100-3.7-P*-A*

680

670

650

680

395

400

325

45

40

205

360

410

420

JSP-100-5.5-P*-A*

680

670

650

680

395

400

325

45

40

205

360

410

420

Model

Tank Capacity

Motor

Pump

Oil Limit

Serial No.

L

KW

CC

MAX

MIN

JSP-10-0.75-V*-A*

10

0.75-4

8.3

10

7

JSP-10-0.75-V*-A*

10

0.75-4

11.1

10

7

JSP-10-1.5-V*-A*

10

1.5-4

11.1

10

7

JSP-20-1.5-V*-A*

20

1.5-4

16.7

20

16

JSP-30-2.2-V*-A*

30

2.2-4

16.7

30

25

JSP-20-1.5-P*-A*

20

1.5-4

8

20

16

JSP-30-1.5-P*-A*

30

1.5-4

16.5

30

25

JSP-30-2.2-P*-A*

30

2.2-4

16.5

30

25

JSP-30-2.2-P*-A*

30

2.2-4

22

30

25

JSP-60-3.7-P*-A*

60

3.7-4

16.5

60

45

JSP-60-3.7-P*-A*

60

3.7-4

22

60

45

JSP-80-3.7-P*-A*

80

3.7-4

22

80

65

JSP-100-3.7-P*-A*

100

3.7-4

22

80

65

JSP-100-5.5-P*-A*

100

5.5-4

36

80

65

Solenoid Valve

Series Number Description

HD

3

2B2A

A2

N

Serial No.

Thread

Spool

Voltage

Appearance

Specifications

Specifications

Serial No.

EX : HD3-2B2A-A2-N

NO.

Thread

3

02 : 1/4" ( NG6 )

3B

 03 : 3/8" ( NG10 )

NO.

Spool

2B2A

Please refer to the symbol list

NO.

Voltage

A1

AC110V

A2

AC220V

A3

AC380V

D1

DC12V

D2

DC24V

R1

RF110V

R2

RF220V

NO.

Appearance

N

DIN connector

NONE

Terminal box

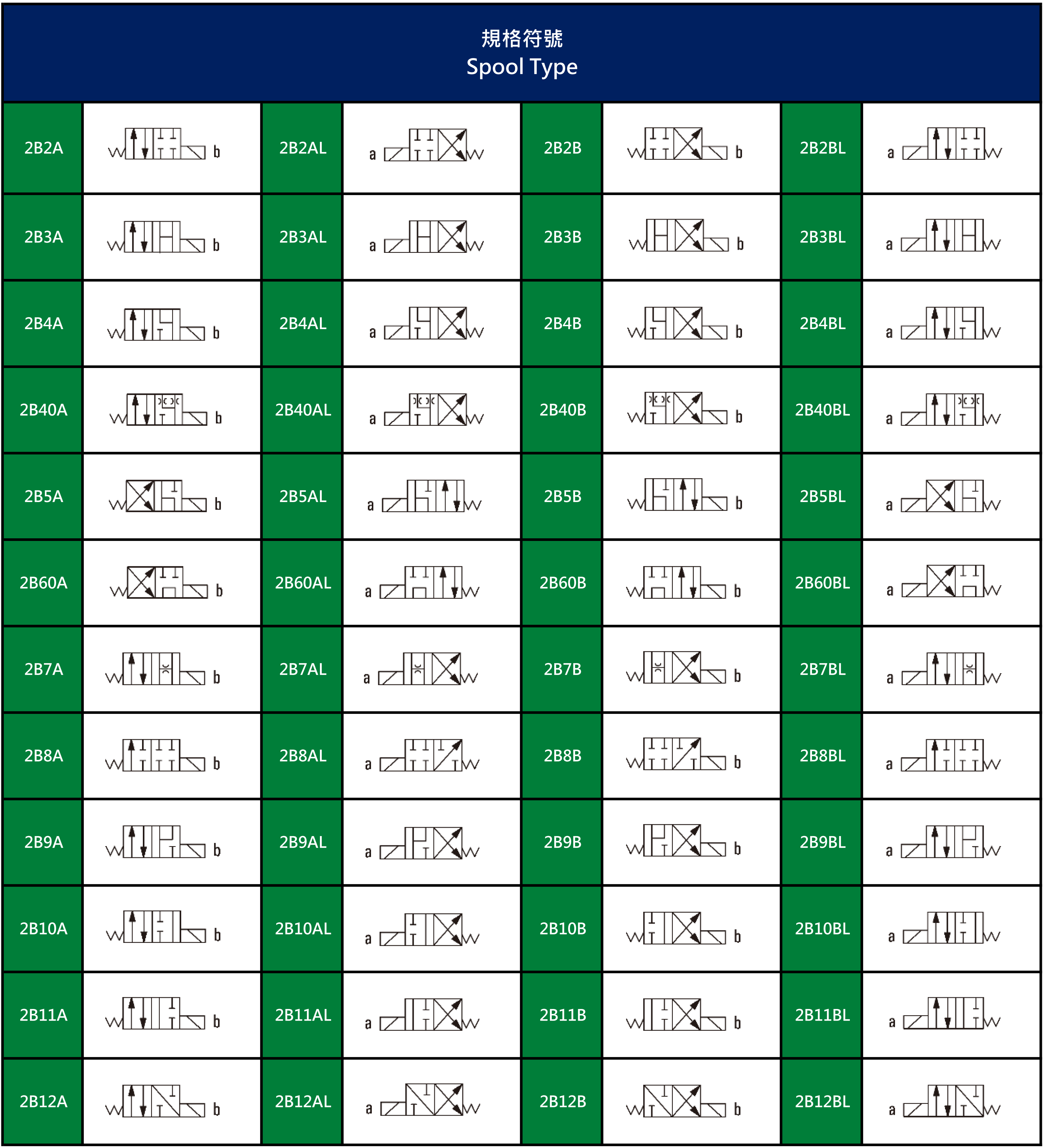

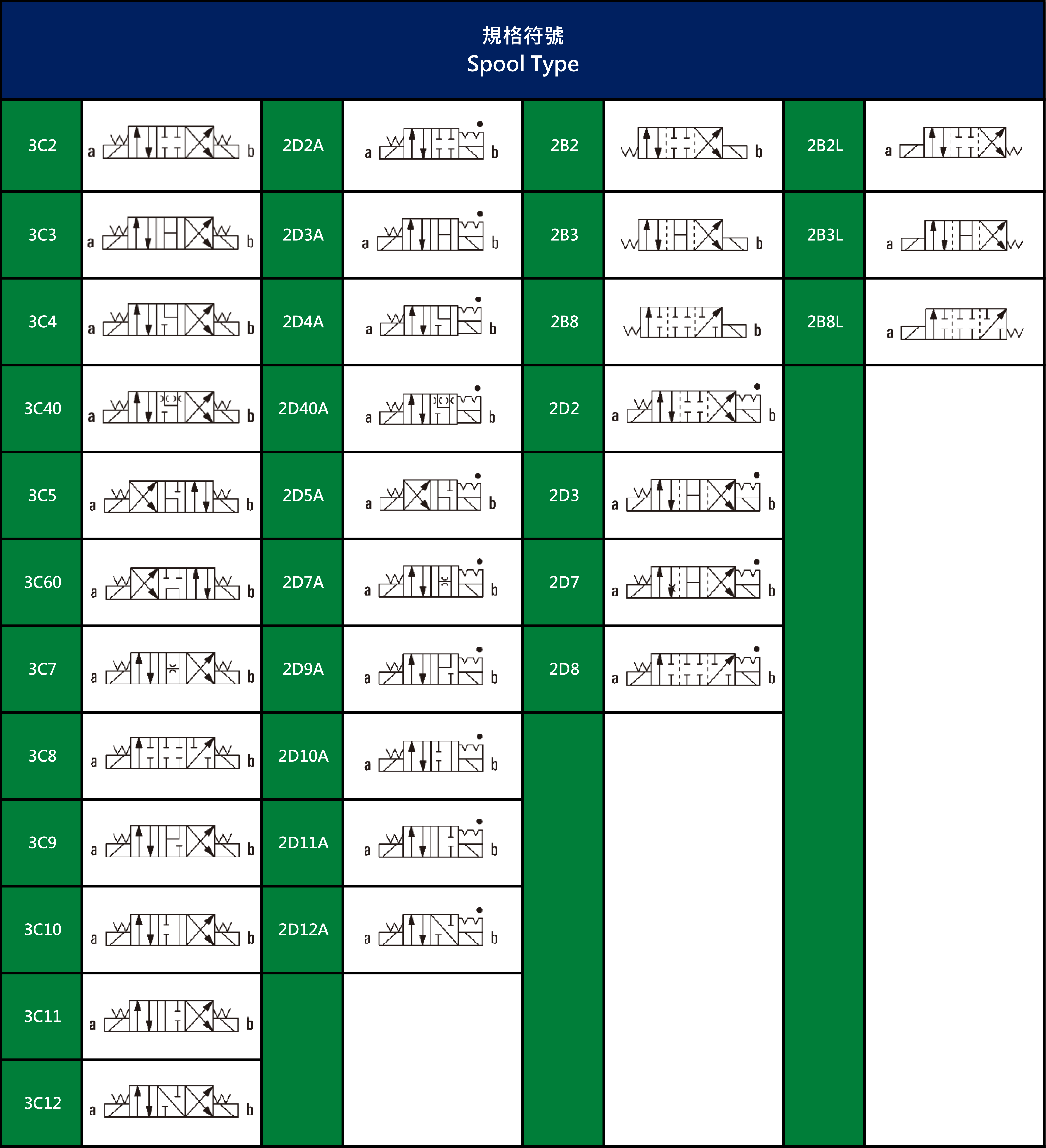

Spool Type

Specifications



Specifications

L*W*H

mm±2

 DRC-10-03-12-S1

255*115*210

 DRC-10-03-12-S2

255*100*210

 DRC-10-03-12-S3

250*110*210

 DRC-10-03-12-S4

297*130*211

 DRC-20-03-18-S4

297*140*298

 AOC-2003-S1

253*115*205

 AOC-2003-S2

253*106*205

 AOC-2010-S4

225*175*240

 AOC-2008-S1

273*125*205

 AOC-2008-S2

273*117*205

 AOC-2006-S4

415*156*210

 AOC-2015-S1



350*265*300

 AOC-2015-2-S1

 AOC-2015-S4

355*190*300

 AOC-2020-S1



350*282*300

 AOC-2020-2-S1

 AOC-2020-S4

355*190*298

 AOC-2024-S1



370*282*361

 AOC-2024-2-S1

 AOC-2024-S4

417*195*360

 AOC-1417-S1

570*196*405

 AOC-1470-S1

570*210*405

 AOC-2030-S1



441*265*423

 AOC-2030-2-S1

 AOC-2030-S4



480*210*409

 AOC-2030-2-S4

 AOC-2040-S1



540*300*530

 AOC-2040-2-S1

 AOC-2040-S4



570*190*523

 AOC-2040-2-S4

 AOC-2050-S1



605*391*670

 AOC-2050-2-S1

 AOC-2080-S1

1060*310*615

 AOC-JAP300E-S4

340*215*360



Specifications

Flow

L/min

  DRC-10-03-12-S1





4

  DRC-10-03-12-S2

  DRC-10-03-12-S3

  DRC-10-03-12-S4

  DRC-20-03-18-S4

6

  AOC-2003-S1



12

  AOC-2003-S2

  AOC-2006-S4

20

  AOC-2010-S4

30

  AOC-2008-S1



35

  AOC-2008-S2

  AOC-2015-2-S1

40

  AOC-2020-2-S1

50

  AOC-2024-2-S1

65

  AOC-2030-2-S1



70

  AOC-2030-2-S4

  AOC-2040-2-S1



75

  AOC-2040-2-S4

  AOC-2015-S1



80

  AOC-2015-S4

  AOC-2020-S1





100

  AOC-2020-S4

  AOC-2050-2-S1

  AOC-JAP300E-S4

  AOC-1417-S1

120

  AOC-2024-S1



130

  AOC-2024-S4

  AOC-2030-S1



140

  AOC-2030-S4

  AOC-2040-S1



150

  AOC-2040-S4

  AOC-1470-S1



200

  AOC-2050-S1

  AOC-2080-S1

350



Specifications

Cooling Capacity

kcal/h

 DRC-10-03-12-S1



1500

 DRC-10-03-12-S2

 DRC-10-03-12-S3



1600

 DRC-10-03-12-S4

 DRC-20-03-18-S4

2200

 AOC-2003-S1



1400

 AOC-2003-S2

 AOC-2010-S4

2000

 AOC-2008-S1



2500

 AOC-2008-S2

 AOC-2006-S4

3000

 AOC-2015-S1



4000

 AOC-2015-2-S1

 AOC-2015-S4

4500

 AOC-2020-S1



5500

 AOC-2020-2-S1

 AOC-2020-S4

6000

 AOC-JAP300E-S4

7000

 AOC-2024-S1



8000

 AOC-2024-2-S1

 AOC-2024-S4



9000

 AOC-1417-S1

 AOC-2030-S1



12000

 AOC-2030-2-S1

 AOC-1470-S1

13000

 AOC-2030-S4



15000

 AOC-2030-2-S4

 AOC-2040-S1



18000

 AOC-2040-2-S1

 AOC-2040-S4



20000

 AOC-2040-2-S4

 AOC-2050-S1



30000

 AOC-2050-2-S1

 AOC-2080-S1

39000



Specifications

Working Pressure

kg

  DRC-10-03-12-S1







10

  DRC-10-03-12-S2

  DRC-10-03-12-S3

  DRC-10-03-12-S4

  DRC-20-03-18-S4

 AOC-1417-S1







20

 AOC-1470-S1

 AOC-2003-S1

 AOC-2003-S2

 AOC-2006-S4

 AOC-2008-S1

 AOC-2008-S2

 AOC-2010-S4

 AOC-2015-S1

















25

 AOC-2015-2-S1

 AOC-2015-S4

 AOC-2020-S1

 AOC-2020-2-S1

 AOC-2020-S4

 AOC-2024-S1

 AOC-2024-2-S1

 AOC-2024-S4

 AOC-2030-S1

 AOC-2030-2-S1

 AOC-2030-S4

 AOC-2030-2-S4

 AOC-2040-S1

 AOC-2040-2-S1

 AOC-2040-S4

 AOC-2040-2-S4

 AOC-2050-S1

 AOC-2050-2-S1

 AOC-2080-S1

 AOC-JAP300E-S4



Specifications

Thread

In & Out

  DRC-10-03-12-S1





4

  DRC-10-03-12-S2

  DRC-10-03-12-S3

  DRC-10-03-12-S4

  DRC-20-03-18-S4

6

  AOC-1417-S1

1"PT

  AOC-1470-S1

1 1/4"PT

  AOC-2003-S1



1/2" PT

  AOC-2003-S2

  AOC-2006-S4



3/4" PT

  AOC-2008-S1

  AOC-2008-S2

  AOC-2010-S4

G3/4"

  AOC-2015-S1















G1"

  AOC-2015-S4

  AOC-2015-2-S1

  AOC-2020-S1

  AOC-2020-S4

  AOC-2020-2-S1

  AOC-2024-S1

  AOC-2024-S4

  AOC-2024-2-S1

  AOC-2030-S1

  AOC-2030-S4

  AOC-2030-2-S1

  AOC-2030-2-S4

  AOC-2040-S1

  AOC-2040-S4

  AOC-2040-2-S1

  AOC-2040-2-S4

  AOC-JAP300E-S4

  AOC-2050-S1



G1 1/4"

  AOC-2050-2-S1

  AOC-2080-S1

1 1/2"PT

Specifications

Series Number Description

JM

120

AP

22

Speed

Bearing type

Connecting

Model

Size

Housing

Voltage

High Speed

Ball Bearing

Lead Wire

Specifications

Model

EX : JM-120-AP-22

NO.

Size mm

120

120

162

162

180

180

205

205

Others

Others

NO.

Housing

AP

Aluminum Painted Black

NO.

Voltage

11

AC 110 V

22

AC 220 V

Others

Others

NO.

Speed



High Speed

NO.

Bearing type



Ball Bearing

NO.

Connecting



Lead Wire

Specifications



Specifications

Working Pressure

kg

 JDRC-P-0.25HP









5

 JDRC-20-03-18-S4

 JDRC-20-03-18-F

 JAOC-P-0.25HP-AOC-2003

 JAOC-P-0.25HP-AOC-2003-AE

 JAOC-P-2003-CB+PS

 JAOC-2024-S4-CF

 JAOC-2030-S4-CF



Specifications

Flow

L/min

 JDRC-P-0.25HP

4

 JDRC-20-03-18-S4



6

 JDRC-20-03-18-F

 JAOC-P-0.25HP-AOC-2003



12

 JAOC-P-0.25HP-AOC-2003-AE

 JAOC-P-2003-CB+PS

 JAOC-2024-S4-CF

130

 JAOC-2030-S4-CF

140



Specifications

Cooling Capacity

kcal/h

 JAOC-P-0.25HP-AOC-2003



1400

 JAOC-P-0.25HP-AOC-2003-AE

 JDRC-P-0.25HP

1500

 JDRC-20-03-18-S4



2200

 JDRC-20-03-18-F

 JAOC-P-2003-CB+PS

2500

 JAOC-2024-S4-CF

9000

 JAOC-2030-S4-CF

15000



Specifications

L*W*H

mm±2

 JDRC-P-0.25HP

530*230*500

 JDRC-20-03-18-S4

420*200*340

 JDRC-20-03-18-F

360*400*580

 JAOC-P-0.25HP-AOC-2003



400*325*450

 JAOC-P-0.25HP-AOC-2003-AE

 JAOC-P-2003-CB+PS

600*300*580

 JAOC-2024-S4-CF

600*650*550

 JAOC-2030-S4-CF

600*650*550



Specifications



 In & Out

 JDRC-P-0.25HP



03 PT

 JDRC-20-03-18-S4

 JDRC-20-03-18-F

 JAOC-P-0.25HP-AOC-2003



04 PT

 JAOC-P-0.25HP-AOC-2003-AE

 JAOC-P-2003-CB+PS

 JAOC-2024-S4-CF



G1"

 JAOC-2030-S4-CF

Specifications

Oil Filtration System

Series No.

PFC-40

NO.

Product Descriptions

1

Extend the use time of oil.

2

Improve the accuracy of the machine.

3

Improve the service life of components.

4

Avoids components and system damage.

5

Reduce maintenance and production cost.

NO.

Motor



1HP

NO.

Voltage

1

AC110V-1Ø

2

AC220V-1Ø

3

Others

NO.

L*W*H*W

Long

about 80cm

Wide

about 70cm

High

about 120cm

Weight

about 70 KG

NO.

Flow



40L/min

NO.

Coarse Filtration



149μ

NO.

Fine Filtration

1

10μ

2

3

4

Others

Precision Oil Filtration System

Series No.

PFC-30-2

NO.

Product Descriptions

1

Extend the use time of oil.

2

Improve the accuracy of the machine.

3

Improve the service life of components.

4

Avoids components and system damage.

5

Reduce maintenance and production cost.

NO.

Motor



1/2HP

NO.

Voltage

1

AC220V-3Ø

2

Others

2

Others

NO.

L*W*H*W

Long

about 50cm

Wide

about 50cm

High

about 90cm

Weight

about 95 KG

NO.

Flow



30L/min

NO.

Fine Filtration





















Water Cutting Fuid Filtration System

Series No.

PFC-30

NO.

Product Descriptions

1

Extend the use time of oil.

2

Improve the accuracy of the machine.

3

Improve the service life of components.

4

Avoids components and system damage.

5

Reduce maintenance and production cost.

NO.

Motor



1HP

NO.

Voltage

1

AC110V-1Ø

2

AC220V-1Ø

3

Others

NO.

L*W*H*W

Long

about 80cm

Wide

about 70cm

High

about 120cm

Weight

about 70 KG

NO.

Flow



30L/min

NO.

Coarse Filtration



149μ

NO.

Fine Filtration

1

10μ

2

3

4

Others

Diesel Oil Filtration System

Series No.

PFC-30-D

NO.

Product Descriptions

1

Extend the use time of oil.

2

Improve the accuracy of the machine.

3

Improve the service life of components.

4

Avoids components and system damage.

5

Reduce maintenance and production cost.

NO.

Motor



1HP

NO.

Voltage

1

AC110V-1Ø

2

AC220V-1Ø

3

Others

NO.

L*W*H*W

Long

about 80cm

Wide

about 70cm

High

about 120cm

Weight

about 70 KG

NO.

Flow



30L/min

NO.

Coarse Filtration



149μ

NO.

Fine Filtration

1

10μ

2

3

4

Others
