Solenoid Valve

Series Number Description

HD

3

2B2A

A2

N

Serial No.

Thread

Spool

Voltage

Appearance

Specifications

Specifications

Serial No.

EX : HD3-2B2A-A2-N

NO.

Thread

3

02 : 1/4" ( NG6 )

3B

 03 : 3/8" ( NG10 )

NO.

Spool

2B2A

Please refer to the symbol list

NO.

Voltage

A1

AC110V

A2

AC220V

A3

AC380V

D1

DC12V

D2

DC24V

R1

RF110V

R2

RF220V

NO.

Appearance

N

DIN connector

NONE

Terminal box

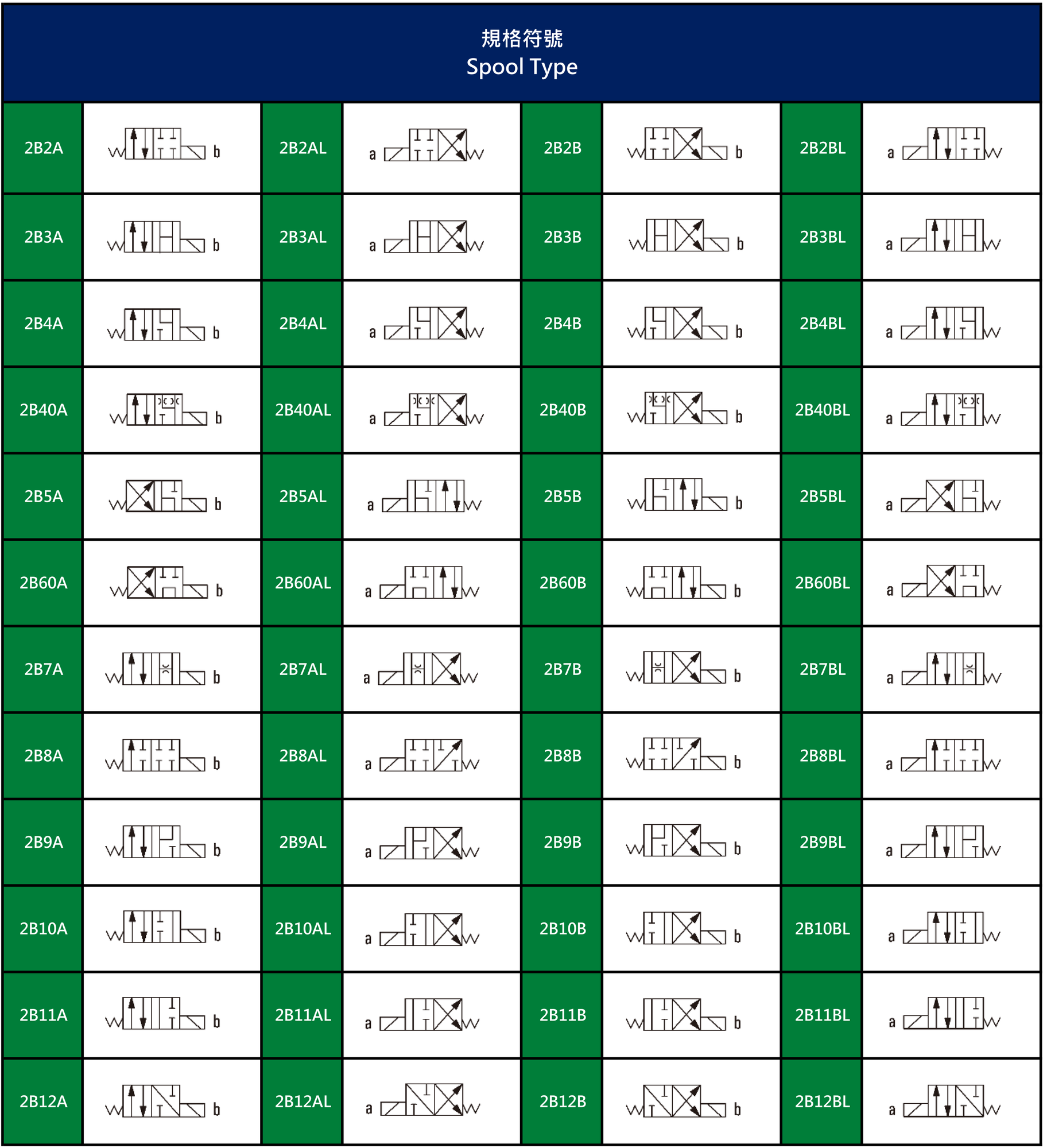

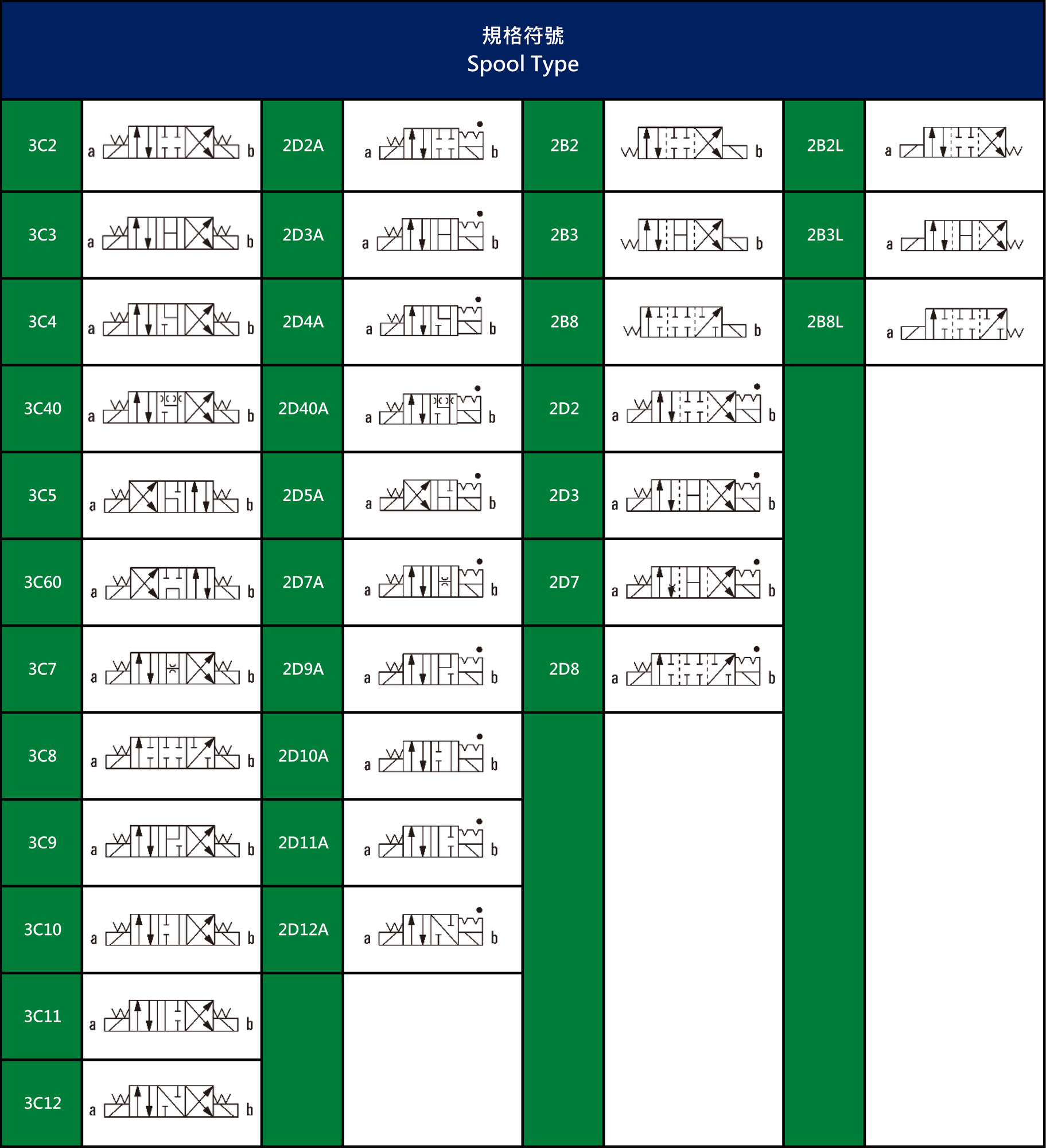

Spool Type
